Distributed ammonia and sustainable fertilizer production

By Deepak Shetty, Business Development Manager at Stamicarbon

Nitrogen-based fertilizers are essential for feeding the growing world population, and their availability and affordability for farmers are critical for ensuring food security. Depending on the region and the socio-economic situation in the world, fertilizer availability differs. Even before the escalation of the conflict in Eastern Europe last year, global fertilizer supplies were impacted by COVID-19 disruptions, labor shortages, high fertilizer consumption in Southeast Asia, and general price volatility.

Despite being necessary for feeding the world, fertilizers produced via traditional manufacturing routes also have a negative environmental impact, contributing to global greenhouse gas emissions. It is estimated that in 2018, synthetic nitrogen fertilizers contributed to 2.1% of the world’s greenhouse gas emissions1. This is not sustainable if we think about the future, where technologies and knowledge should be aimed at producing fertilizers with minimal environmental impact, and one key step to address this challenge is Clean ammonia.

Different shades of ammonia

The most common ammonia production route uses the Haber-Bosch process of high-pressure ammonia synthesis, invented in the early 1900s. For economic reasons, hydrogen – a building block of ammonia – is derived from fossil fuels through either steam reforming (gray ammonia) or coal gasification (brown ammonia). Neither gray nor brown ammonia is sustainable due to the high energy intensity of the process and high carbon dioxide emissions from fossil fuels.

Gray ammonia production
Gray ammonia production

Blue ammonia is based on the grey or brown process, but the carbon dioxide generated is sequestrated and stored – not emitted into the atmosphere. This already offers a more sustainable production route. By eliminating carbon from the process entirely, green ammonia presents a viable, sustainable solution. The green ammonia process combines renewable electricity with an electrolyzer to produce hydrogen and derives nitrogen from the air using a nitrogen generation unit. Using the resulting green ammonia as a feedstock for nitrate-based fertilizers like ammonium nitrate and its derivatives results in carbon-free fertilizers, or, if the carbon component is available from a circular source, still for urea. Green ammonia can then lower the carbon footprint of the fertilizer industry but can also similarly contribute to other areas such as (shipping) fuel and energy markets.

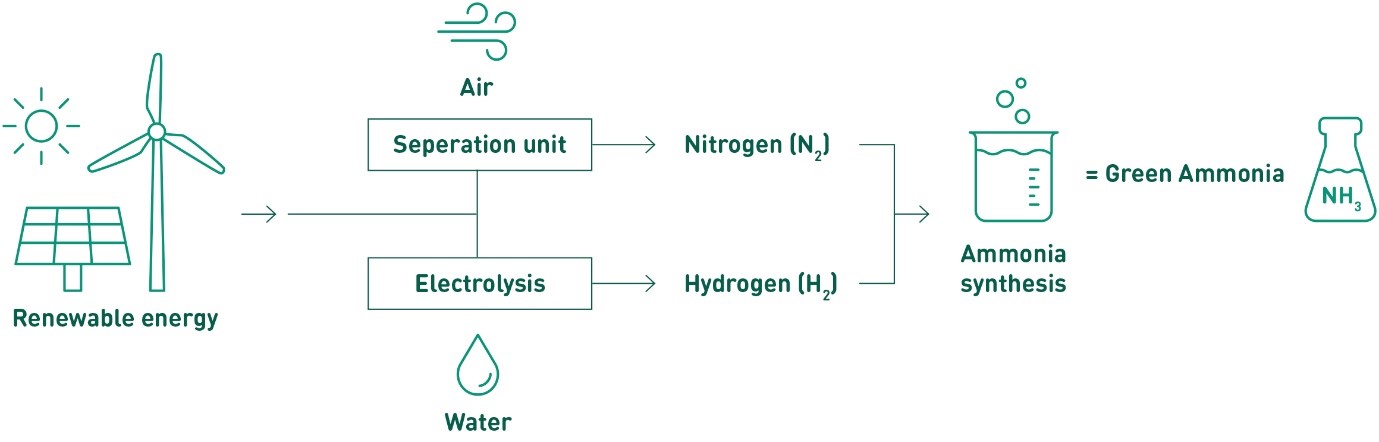

Green ammonia production
Green ammonia production

Local production of fertilizers using renewables

The availability of renewable energy acts as the driving force for green ammonia production. Renewable energy resources are distributed more evenly around the globe than fossil fuels, and the type of available renewable energy depends on location. Countries where these resources are in ample supply can become more self-sufficient in fertilizer production. This, in turn, would reduce problems caused by supply chain disruptions and price fluctuations.

Let’s look at Africa as an example of a region with abundant renewable energy resources that can be used to increase local fertilizer production and strengthen food security. The high availability of solar energy resources in Africa enables the production of green hydrogen/ammonia on a large scale. According to a 2022 study, it is possible to produce more than 50 Mt of green hydrogen per year using solar energy in Africa by 2035 for local use and export, facilitating green fertilizer production2

In Africa, the agricultural sector is crucial for the continent’s economies. For example, in sub-Saharan Africa, agriculture accounts for 14% of the region’s GDP3. And the whole continent certainly has big agricultural potential, with 60% of the world’s uncultivated arable land4. Fertilizers are essential for food security in Africa, which has been further weakened in recent years by the impacts of Covid-19 and climate change.

Stamicarbon has recently completed a feasibility study to produce green ammonia in Angola. Check the article here.

Capanda Dam, the source of renewable energy for the Minbos project in Angola
Capanda Dam, the source of renewable energy for the Minbos project in Angola

The costs of fertilizer imports, distribution and logistics are high, which reduces the availability of fertilizers for farmers. High port entry and domestic distribution costs, which increase even further in case of supply chain disruptions, make fertilizers difficult for farmers to afford.

Local fertilizer production would have a positive impact on the affordability and availability of fertilizers for farmers. Local communities would benefit from developmental projects undertaken as part of the corporate social responsibility of the fertilizer plants. This would create employment and educational opportunities and boost the development of infrastructure.

A typical green fertilizer plant configuration

Combining green hydrogen with nitrogen from a nitrogen generation unit can produce ammonia without using fossil feedstocks or fuel. This ammonia would serve as the basis for further downstream fertilizer products. A typical green ammonia plant configuration comprises the following five sections:

  1. Solar/ Wind/ Hydro/Geothermal production plant for Renewable Energy generation
  2. Air Separation Unit for capturing atmospheric Nitrogen as a raw material to produce green ammonia
  3. Green Hydrogen plant consisting of Electrolysis, a process that separates water into hydrogen and oxygen using electricity generated from renewable resources
  4. Ammonia synthesis unit consisting of synthesis converter where hydrogen and nitrogen gases react to form ammonia over the catalyst at high pressure
  5. Nitrate fertilizer unit consisting of a nitric acid unit, ammonium nitrate, and other derivatives including calcium ammonium nitrate
Green fertilizer plant configuration
Green fertilizer plant configuration

Reducing the carbon footprint in fertilizers with green ammonia

For a long time, the fertilizer industry has used the economy of scale benefits, building bigger, higher-capacity production facilities. Today’s industry landscape, however, paints an alternative path forward: as the world transitions toward a zero-carbon economy, large-scale green projects cannot be rapidly implemented. That is because of limitations in renewable resource availability and the constraints on the production capacity of the electrolyzer. As a result, achieving economy of scale is a challenge when it comes to green fertilizer production. Furthermore, with the intermittent supply of renewables and high prices of energy and hydrogen storage, there are still challenges to be overcome before large-scale green ammonia production is realized efficiently and economically. The good news is that at small and mid-size scales, there are projects active today overcoming these economic hurdles.

Reducing the environmental impact of fertilizers will continue to be an important topic as the world moves towards a more sustainable future. Existing environmental commitments and legislation are there to facilitate the energy transition. Ammonia is an essential building block for nitrates, and its demand will continue to grow with the growth of the world population that relies on fertilizers for food security. By using renewable energy for ammonia synthesis, the industry moves closer to a sustainable, carbon-free future of fertilizers.

Listen to our podcast to learn more about sustainable fertilizer production using Stami Green Ammonia technology.

Check out our green ammonia projects in:


Middle East




1. Stefano Menegat, Alicia Ledo and Reyes Tirado. (2022). “Greenhouse gas emissions from global production and use of nitrogen synthetic fertilizers in agriculture.” Available at: https://www.nature.com/articles/s41598-022-18773-w

2. European Investment Bank (December 21, 2022), “New study confirms €1 trillion Africa’s extraordinary green hydrogen potential.” Available at: https://www.eib.org/en/press/all/2022-574-new-study-confirms-eur-1-trillion-africa-s-extraordinary-green-hydrogen-potential

3. Oxford Business Group (April 2021), “Agriculture in Africa 2021”. Available at: https://oxfordbusinessgroup.com/wp-content/uploads/files/blog/specialreports/960469/OCP_Agriculture_Africa_Report_2021.pdf

4. Wim Plaizier (January 22, 2016), “2 truths about Africa’s agriculture,” World Economic Forum. Available at: https://www.weforum.org/agenda/2016/01/how-africa-can-feed-the-world/
